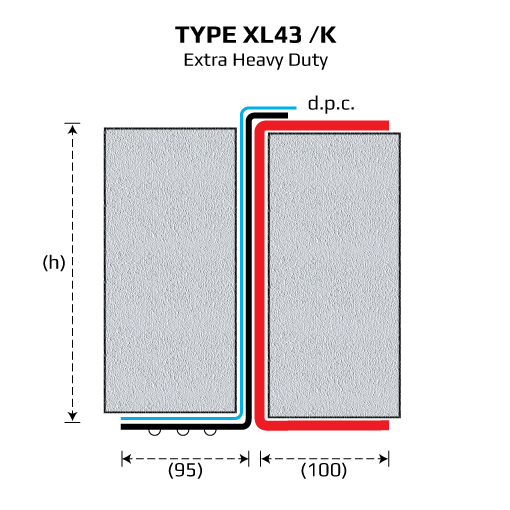

Type XL43

Lintel Description

Available to suit 215mm wall

Extra heavy duty loading conditions to suit solid wall construction. To achieve loading figures lintel must be built in with stone, block/brick-work as shown.

Steel lintels should be installed with a minimum end bearing of 150mm, bedded on mortar and levelled along its length and across its width. The lintel should be suitably propped to facilitate speed of construction (see loading table for details). All lintels should be installed with a damp proof course (DPC). See installation instructions in downloads for further information.

Standard lengths are manufactured in 150mm increments up to 3000mm and 250mm increments from 3000mm up to and including 4750mm.

The XL43 lintel can be supplied to suit plaster (specify XL43/K)

For stone or brick finish the XL43 lintel is manufactured with a soffit plate. This is a continuous piece of galvanised steel welded to the underside of the lintel showing no welds and can be painted to suit finish. (Specify XL43 S/P).

Manufactured using a 229 x 89 x 32.76 kg/m PFC

Declaration of Performance Files

Loading Table

  • Lintel Length (mm)
  • 600
  • 3000
  • 3250
  • 3500
  • 3750
  • 4000
  • 4250
  • 4500
  • 4750
  • 5100
  • 5400
  • 5700
  • 6000
  • 6500

Height (h) (mm)

235

235

235

235

235

235

235

235

235

235

Thickness (mm)

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

S.W.L. (kN)

134

105

84

69

63

55

49

43

39

34

U.W.L. (kN)

215

168

135

111

100

88

78

69

63

54

Mass per meter length (kg/m)

41.4

41.4

41.4

41.4

41.4

41.4

41.4

41.4

41.4

41.4
