type XCL/WIL

Lintel Description

Available to suit 90mm - 200mm cavity widths.

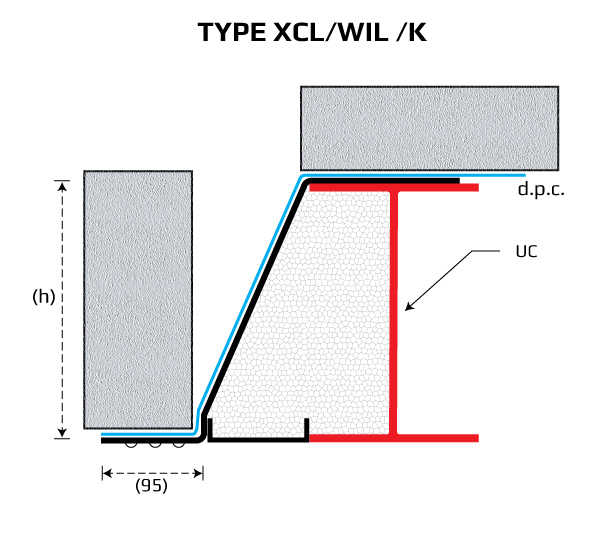

This XCL/WIL Type Lintel is used to support an outer leaf of 100mm and an inner leaf of 215mm. Inner leaf constructed as shown. This lintel is designed for extra heavy duty loading conditions.

Steel lintels should be installed with a minimum end bearing of 150mm, bedded on mortar and levelled along its length and across its width. The lintel should be suitably propped to facilitate speed of construction (see loading table for details). All lintels should be installed with a damp proof course (DPC). See installation instructions in downloads for further information.

Standard lengths are manufactured in 150mm increments up to 3000mm and 250mm increments from 3000mm up to and including 4750mm

The XCL/WIL can be supplied to suit plaster (specify XCL/K)

* Continuous U-PLATE. Manufactured from a 203 x 203 x 46kg/m UB

Loading Tables

  • Lintel Length (mm)
  • 600
  • 2100
  • 2250
  • 2400
  • 2550
  • 2700
  • 2850
  • 3000
  • 3250
  • 3500
  • 3750
  • 4000
  • 4250
  • 4500
  • 4750
  • 5100
  • 5400
  • 5700
  • 6000
  • 6500

Height (h) (mm)

210

210

210

210

210

210

210

210

210

210

Thickness (mm)

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

S.W.L. (kN) ratio 1

300

300

271

235

188

156

128

107

86

71

U.W.L. (kN) ratio 1

480

480

434

376

300

250

204

171

138

114

Mass per meter length (kg/m)

58.7

58.7

58.7

58.7

58.7

58.7

58.7

58.7

58.7

58.7

  • Lintel Length (mm)
  • 600
  • 2100
  • 2250
  • 2400
  • 2550
  • 2700
  • 2850
  • 3000
  • 3250
  • 3500
  • 3750
  • 4000
  • 4250
  • 4500
  • 4750
  • 5100
  • 5400
  • 5700
  • 6000
  • 6500

Height (h) (mm)

210

210

210

210

210

210

210

210

210

210

Thickness (mm)

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

S.W.L. (kN) ratio 1

300

300

271

235

188

156

128

107

86

71

U.W.L. (kN) ratio 1

480

480

434

376

300

250

204

171

138

114

Mass per meter length (kg/m)

59.4

59.4

59.4

59.4

59.4

59.4

59.4

59.4

59.4

59.4

  • Lintel Length (mm)
  • 600
  • 2100
  • 2250
  • 2400
  • 2550
  • 2700
  • 2850
  • 3000
  • 3250
  • 3500
  • 3750
  • 4000
  • 4250
  • 4500
  • 4750
  • 5100
  • 5400
  • 5700
  • 6000
  • 6500

Height (h) (mm)

210

210

210

210

210

210

210

210

210

210

Thickness (mm)

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

S.W.L. (kN) ratio 1

300

300

271

235

188

156

128

107

86

71

U.W.L. (kN) ratio 1

480

480

434

376

300

250

204

171

138

114

Mass per meter length (kg/m)

59.9

59.9

59.9

59.9

59.9

59.9

59.9

59.9

59.9

59.9

  • Lintel Length (mm)
  • 600
  • 2100
  • 2250
  • 2400
  • 2550
  • 2700
  • 2850
  • 3000
  • 3250
  • 3500
  • 3750
  • 4000
  • 4250
  • 4500
  • 4750
  • 5100
  • 5400
  • 5700
  • 6000
  • 6500

Height (h) (mm)

210

210

210

210

210

210

210

210

210

210

Thickness (mm)

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

S.W.L. (kN) ratio 1

300

300

271

235

188

156

128

107

86

71

U.W.L. (kN) ratio 1

480

480

434

376

300

250

204

171

138

114

Mass per meter length (kg/m)

60.7

60.7

60.7

60.7

60.7

60.7

60.7

60.7

60.7

60.7

  • Lintel Length (mm)
  • 600
  • 2100
  • 2250
  • 2400
  • 2550
  • 2700
  • 2850
  • 3000
  • 3250
  • 3500
  • 3750
  • 4000
  • 4250
  • 4500
  • 4750
  • 5100
  • 5400
  • 5700
  • 6000
  • 6500

Height (h) (mm)

210

210

210

210

210

210

210

210

210

210

Thickness (mm)

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

S.W.L. (kN) ratio 1

300

300

271

235

188

156

128

107

86

71

U.W.L. (kN) ratio 1

480

480

434

376

300

250

204

171

138

114

Mass per meter length (kg/m)

61.1

61.1

61.1

61.1

61.1

61.1

61.1

61.1

61.1

61.1
